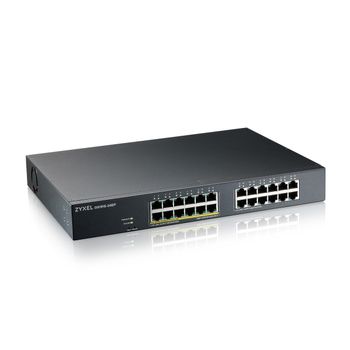

ZYXEL GS1915-24EP, 24-port GbE PoE Smart hybrid Switch, standalone or NebulaFlex Cloud, 130 Watt
|
|
ZYXEL GS1915-24EP, 24-port GbE PoE Smart hybrid Switch, standalone or NebulaFlex Cloud, 130 Watt
-
Product
Managed
-
Ports
24
-
Speed
1Gbps
|
Description
Specifications
Related products
Zyxel GS1915-24EP. Switch-type: Administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 24. MAC adresselabel: 8000 entries, Switch kapacitet: 48 Gbit/sek.. Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE.... Strøm over Ethernet (PoE). Kan monteres på væggen, Stativ-montering, Formfaktor: 1U
Administrationsfunktioner |
|---|
| Switch-type | Administreret |
| Switch lag | L2 |
| Servicekvalitet support (QoS) | Yes |
| Webbaseret administration | Yes |
| Cloud-administreret | Yes |
| MIB support | Yes |
Porte & Grænseflader |
|---|
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk |
|---|
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| 10G understøttelse | No |
| Port-spejlning | Yes |
| Flowkontrol support | Yes |
| Broadcast stormkontrol | Yes |
| Spanning tree protokol | Yes |
| Ethernet LAN-datahastigheder | 100,1000 Mbit/s |
| VLAN understøttelse | Yes |
| Vituelle LAN funktioner | Port-based VLAN |
Dataoverførsel |
|---|
| MAC adresselabel | 8000 entries |
| Switch kapacitet | 48 Gbit/sek. |
| Hastighed for videresendelse | 35,7 Mpps |
| Jumbo Frames support | Yes |
| Jumbo rammer | 9000 |
Sikkerhed |
|---|
| DHCP funktioner | DHCP relay, DHCP client |
| IGMP snooping | Yes |
| Sikkerhedsalgoritmer | HTTPS, SSH-2, SSL/TLS, SHA-2 |
| SSH/SSL support | Yes |
| Loop beskyttelse | Yes |
| Beskyttelse af adgangskode | Yes |
Multicast funktioner |
|---|
| Multicast-understøttelse | Yes |
Protokoller |
|---|
| Administrationsprotokoller | SNMP v1, v2c, v3 |
Design |
|---|
| Stativ-montering | Yes |
| Formfaktor | 1U |
| Produktfarve | Sort |
| LED-indikatorer | Ja |
| Kan monteres på væggen | Yes |
Præstation |
|---|
| Ventilatorfri | Yes |
| MTBF (PoE) | 768989 t |
Strømstyring |
|---|
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Yes |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (maks.) | 166,1 W |
Power over Ethernet (PoE) |
|---|
| Strøm over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) porte, antal | 12 |
| Total Power over Ethernet (PoE) | 130 W |
Driftsbetingelser |
|---|
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 95% |
| Varmeafgivelse | 566 BUT/t |
Vægt & størrelser |
|---|
| Bredde | 330 mm |
| Dybde | 230 mm |
| Højde | 44 mm |
| Vægt | 2,48 kg |
Emballeringsdata |
|---|
| Pakkebredde | 389 mm |
| Pakkedybde | 337 mm |
| Pakkehøjde | 79 mm |
| Pakkevægt | 3,87 kg |
Expected in stock
19-10-2024
