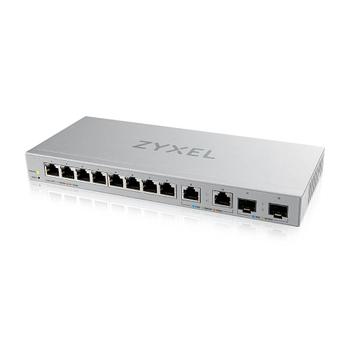

ZYXEL XGS1210-12,8-Port Gigabit webmanaged MultiGig Switch with 8 port 1G + 2-Port 2.5G + 2-Port SFP
|
|
ZYXEL XGS1210-12,8-Port Gigabit webmanaged MultiGig Switch with 8 port 1G + 2-Port 2.5G + 2-Port SFP
|
Description
Specifications
Related products
Zyxel XGS1210-12-ZZ0102F. Switch-type: Administreret. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex. MAC adresselabel: 16000 entries, Switch kapacitet: 66 Gbit/sek.. Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az. DC indgangsspænding: 12 V
Administrationsfunktioner |
|---|
| Switch-type | Administreret |
| Servicekvalitet support (QoS) | Yes |
| Webbaseret administration | Yes |
Porte & Grænseflader |
|---|
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal 2,5G Ethernet-porte (kobber) | 2 |
| Antal SFP + modulslots | 2 |
Netværk |
|---|
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Fuld duplex | Yes |
| Flowkontrol support | Yes |
| Link aggregering | Yes |
| Broadcast stormkontrol | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
| VLAN understøttelse | Yes |
Dataoverførsel |
|---|
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 66 Gbit/sek. |
| Hastighed for videresendelse | 49 Mpps |
| Statisk rute | Yes |
| Jumbo Frames support | Yes |
| Jumbo rammer | 12000 |
| Pakke bufferlager | 1,5 MB |
Sikkerhed |
|---|
| DHCP funktioner | DHCP client |
| IGMP snooping | Yes |
| Loop beskyttelse | Yes |
Multicast funktioner |
|---|
| Multicast-understøttelse | Yes |
Design |
|---|
| Produktfarve | Grå |
| Knap til nulstilling | Yes |
| LED-indikatorer | Ja |
Strømstyring |
|---|
| Strømkilde | Vekselstrøm/jævnstrøm |
| Strømforsyning inkluderet | Yes |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| DC indgangsspænding | 12 V |
| Indgangsstrøm | 1.5 A |
| Strømforbrug (maks.) | 15,61 W |
Driftsbetingelser |
|---|
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser |
|---|
| Bredde | 250 mm |
| Dybde | 104 mm |
| Højde | 24 mm |
| Vægt | 768 g |
Emballeringsdata |
|---|
| Pakkebredde | 306 mm |
| Pakkedybde | 225 mm |
| Pakkehøjde | 64 mm |
| Pakkevægt | 1,22 kg |
Logistik data |
|---|
| Harmoniseret systemkode (HS) | 85176990 |
